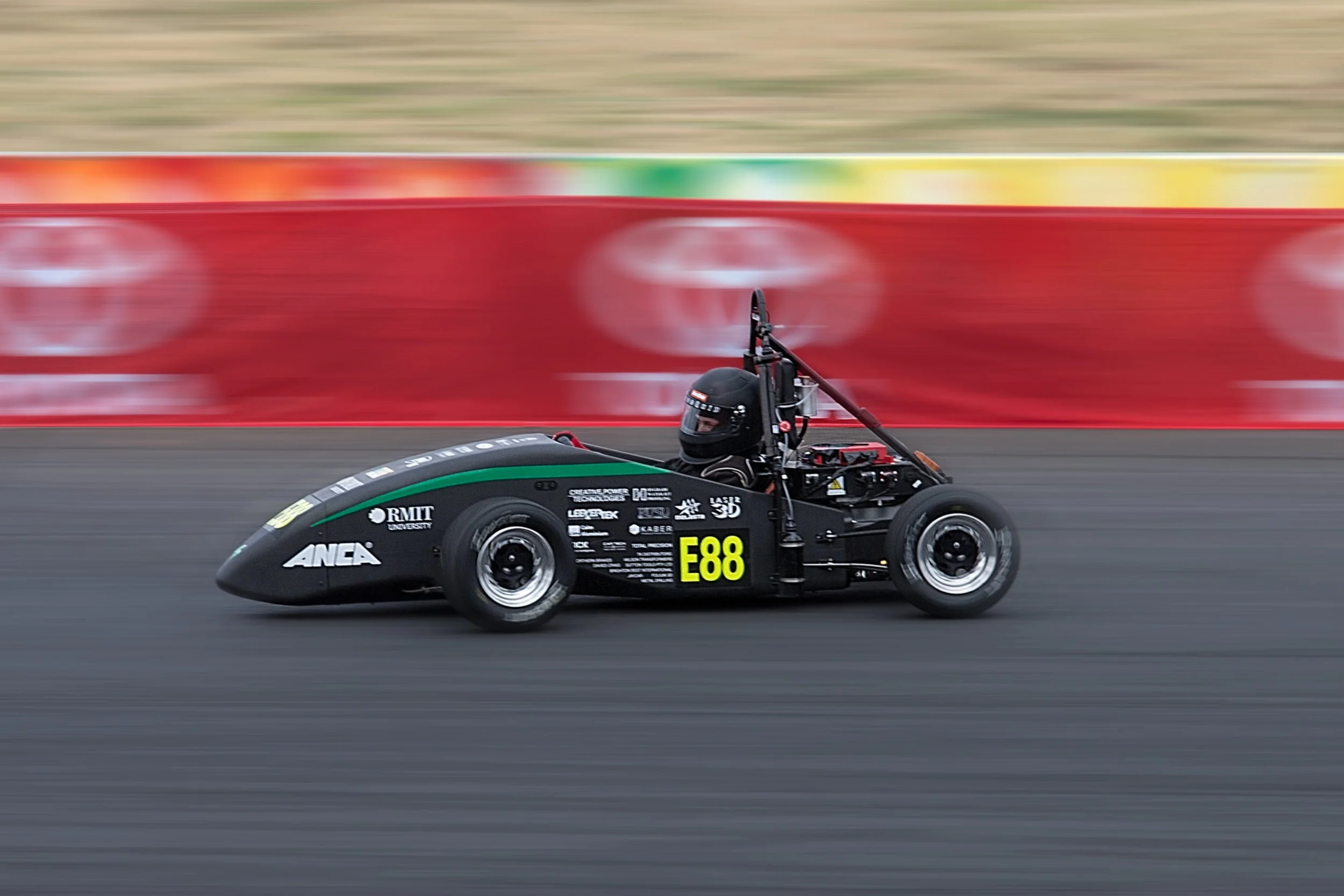

R16e

PERFORMANCE

Peak Power75kW
Max Torque240Nm
Acceleration (0-100km/h)3.14s
Max Speed120km/h
Max Lateral Acceleration1.6g

GENERAL

Mass197kg
Weight distribution wih 70kg driver48/52% front/rear
Front Track1180mm
Rear Track1140mm
Wheel Base1550mm
Dimensions1068mm high, 2684 mm long
Chassis ConstructionCarbon Fibre Monocoque with rear carbon fibre stressed casing

SUSPENSION AND WHEELS

Suspension TypeDouble unequal length A-arm, pull rod geometry
Tire Size, Compound and Make18x6", LC0 Hoosier
Wheels (Width and Construction)10x6.25" 3 piece aluminium
Centre of Gravity Design height218mm

TRACTIVE SYSTEM

MotorEnstroj EMRAX 228 HV
Motor ControllerUnitek Bamocar D3
Accumulator Voltage487V maximum, 429V nominal
Accumulator Capacity6.4kWh

DRIVETRAIN

Drive TypeChain drive with Drexler LSD
Final Drive Ratio3.35
